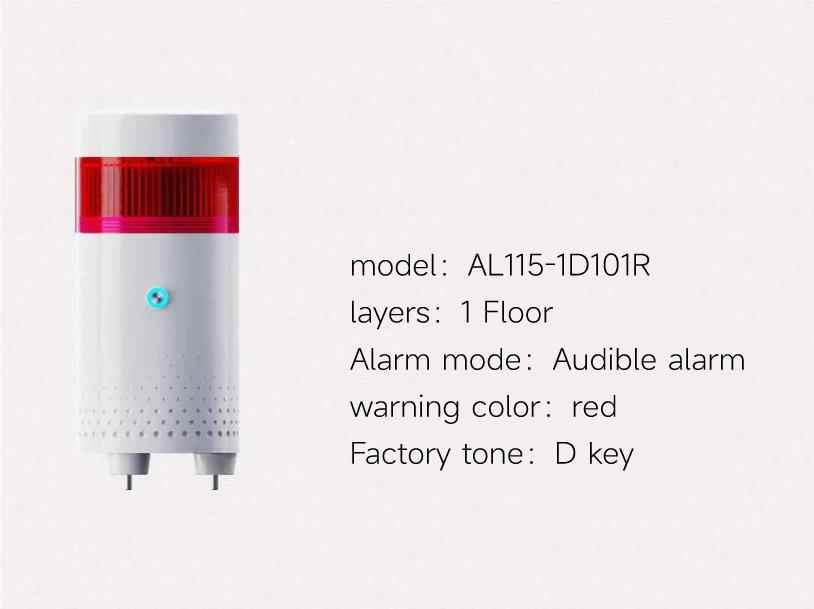

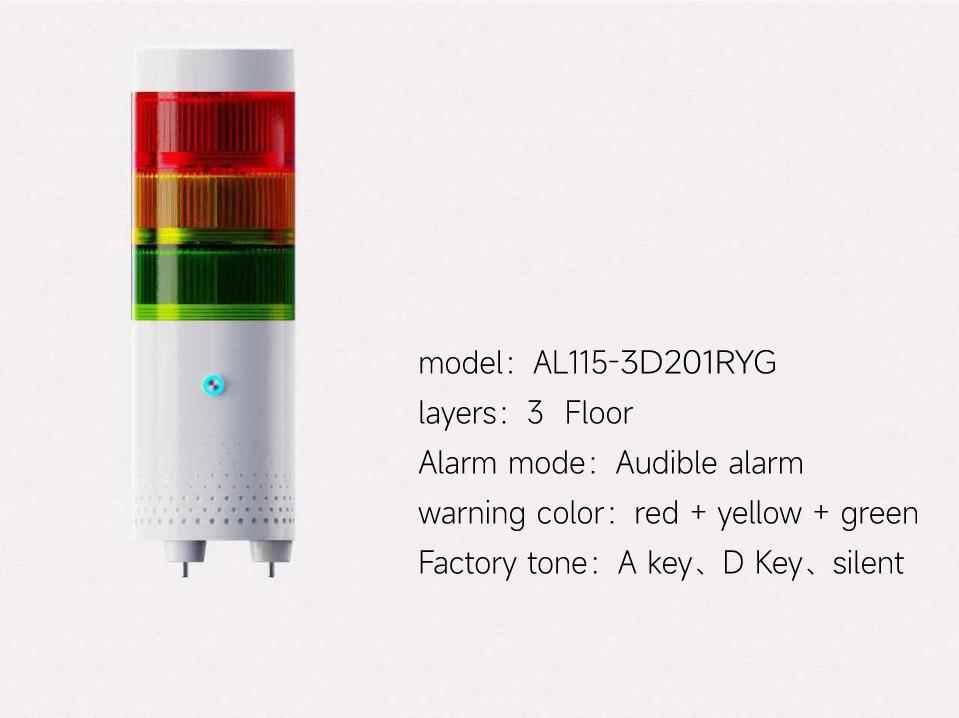

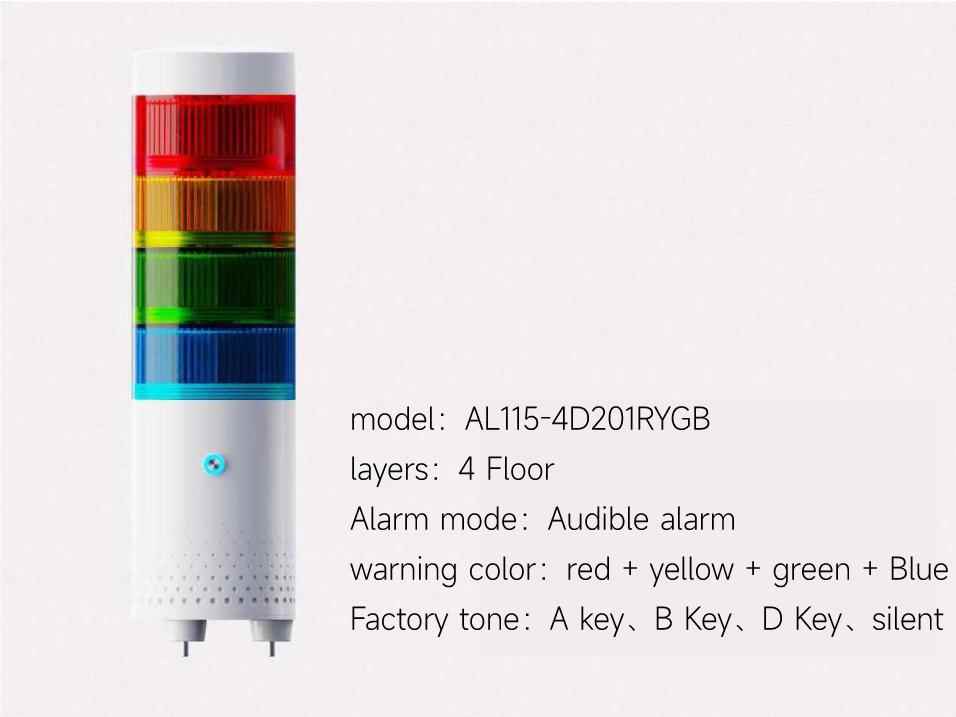

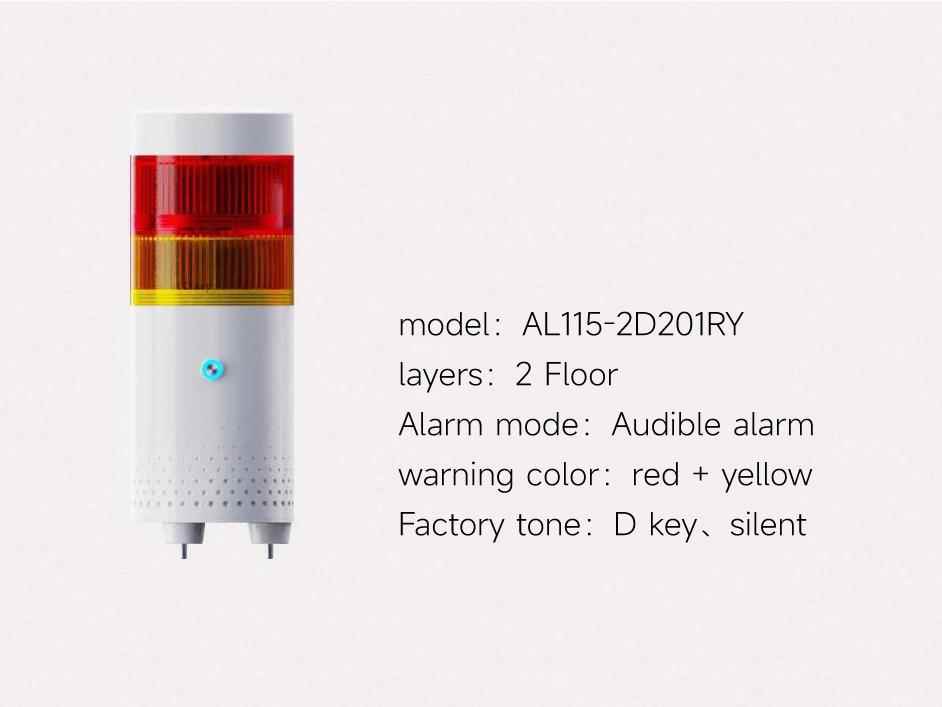

Truck Crane Multilayer Signal Light AL115 | New Product Release
Truck Crane Multilayer Signal Light, also known as working status indicators, will cause tri-color light alarms when the truck crane is overloaded, height limit alarms and the amplitude is too small or too large.
Nanhua Electronics Truck Crane Multilayer Signal Lights have been used in Zoomlion crawler cranes and truck cranes for more than ten years, and many models have been developed so far. This time, the technical reform of multi-layer signal lights has been carried out to improve production efficiency and increase product stability.
1. Better warning effect
In accordance with the EU R65 vehicle warning light standard, the photometric characteristic test is carried out at a distance of at least 25 m;
Satisfy the light intensity in all directions under DC18V, 24V, 32V voltage ≥ 200cd. In strobe mode, the light emission is composed of multiple flashes, and the time interval between each flash is ≤0.04s;
Horizontal 0° angle ≥ 200cd.
Satisfy the light intensity in all directions under DC18V, 24V, 32V voltage ≥ 200cd. In strobe mode, the light emission is composed of multiple flashes, and the time interval between each flash is ≤0.04s;
Horizontal 0° angle ≥ 200cd.
2. Better protection level
Change the glue seal to the physical device seal, and use double-layer sealing ring and waterproof edge to improve the protection performance;
The lampshade, reflector and lamp board form an integral light-emitting module;
With cylindrical structure, the structure is more stable.
The lampshade, reflector and lamp board form an integral light-emitting module;
With cylindrical structure, the structure is more stable.
3. More stable performance
A constant voltage circuit is added to the power supply to ensure that the product will not be damaged in the case of strong voltage fluctuations;
The lamp beads are driven independently in groups to ensure that the brightness of the whole lamp will not be affected if a single lamp bead is damaged.
The lamp beads are driven independently in groups to ensure that the brightness of the whole lamp will not be affected if a single lamp bead is damaged.
Product Features Summary
1.
The warning range can reach 20-30 meters
With 4 flashing modes.
2.
One-click setting
The sound warning is up to 110dB, and the tone and volume can be adjusted independently, one-key operation.
3.
With memory function
Power off and reconnect, no need to reset.
4.
High power and high brightness lamp beads
The special process is adopted to improve the luminous intensity of the color light source, thereby reducing energy consumption and improving efficiency.
5.
Using high-sensitivity speakers
The professional acoustic treatment resonance chamber has the characteristics of low distortion, high conversion efficiency and low calorific value.
6.
Three-layer sealing design
So that the product can work stably in high temperature and high humidity environment for a long time.
7. Modular design
Improve the delivery speed of finished products, and expand the combined functions according to different needs to meet a variety of working conditions and applications.
The warning range can reach 20-30 meters
With 4 flashing modes.
2.
One-click setting
The sound warning is up to 110dB, and the tone and volume can be adjusted independently, one-key operation.
3.
With memory function
Power off and reconnect, no need to reset.
4.
High power and high brightness lamp beads
The special process is adopted to improve the luminous intensity of the color light source, thereby reducing energy consumption and improving efficiency.
5.
Using high-sensitivity speakers
The professional acoustic treatment resonance chamber has the characteristics of low distortion, high conversion efficiency and low calorific value.
6.
Three-layer sealing design
So that the product can work stably in high temperature and high humidity environment for a long time.
7. Modular design
Improve the delivery speed of finished products, and expand the combined functions according to different needs to meet a variety of working conditions and applications.
Truck Crane Multilayer Signal Light AL115 can also expand the combined functions according to different needs to meet various working conditions. The application field has been extended to more complex working conditions such as subway tunnels, highways and bridges, and workshop assembly lines, providing equipment status prompts or security warnings and other functions.
