Adopt non-contact magnetic sensor measurement principle

The collected data has high accuracy and strong reliability

Adopt gravity balance pendulum design, strong load capacity, stable in a vertical position

Wide wind speed measurement range, low start-up wind speed

Adopt all metal shell, good corrosion resistance and strong wind resistance of the wind cup

The wind cup is made of corrosion-resistant anodized aluminum alloy, which can be used under harsh conditions

Adopting fault-tolerant design, the sensor will not be damaged when the wrong wire is connected

Multi-level lightning and surge protection design

Can work in a wide voltage range

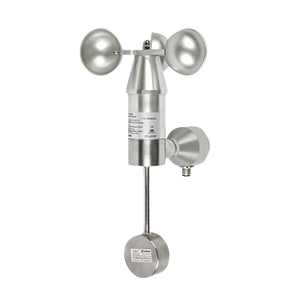

The FA13B wind speed sensor is a wind measuring equipment specially developed for crawler cranes, bridge inspection vehicles and other large lifting and cantilever mobile rotating machinery. The product adopts a pendulum counterweight design, which can swing at will within ±90° and stabilize in the vertical direction to achieve real-time horizontal wind speed measurement. The product has built-in anti-radio frequency, anti-electromagnetic interference and lightning surge protection circuits. Built-in sensitive temperature sensor can automatically heat in low temperature environment. The wind cup and the main body are connected by a multi-layer labyrinth structure, using imported Japanese bearings, high-quality seawater corrosion-resistant anodized aluminum alloy and stainless steel 304. The internal circuit is sealed with glue, which can effectively prevent water, salt spray, sand and dust. The impact of product life. It has been widely used in large-scale equipment such as crawler cranes and bridge inspection vehicles at home and abroad.
